Rod Break Down Machine

Rod Break Down Machine
Rod Break Down Machine
Send Inquiry
Product Code : NEW-04
Brand Name : NIRMALA
Product Description

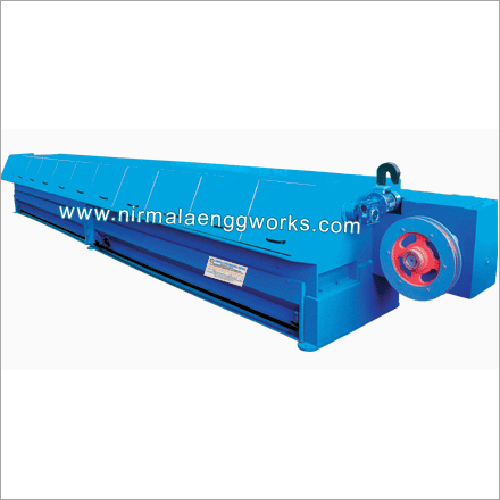

We offer this Rod Break Down Machine to the patrons in varied specifications. This machine is mainly demanded for drawing and coiling the wires of aluminium and copper. It is featured with high efficiency, noise less functioning and high precision gear transmission. Designed in horizontal structure, the provided machine is equipped with dual driving motors and rapid die change system. This Rod Break Down Machine has a fully immersed section to cool and lubricate the parts that ensure the quality of drawing wire.

Specifications
•    Model No.    NEW 6314/9    NEW 6314/11    NEW 6314/13
•    No. of Capstan 8 + 1          10 + 1              12 + 1
•    Capstan Diameter    450 mm    450 mm    450 mm
•    Machine Reduction    22.22%    22.22%    22.22%
•    Dia Drafting    23.50%    23.50%    23.50%
•    Elongation    28.57%    28.57%    28.57%
•    Inlet Size    9.50mm (Aluminium)    9.50mm (Aluminium)    9.50mm (Aluminium)
•    8.00mm (Copper)    8.00mm (Copper)    8.00mm  (Copper)
•    Outlet    2.70mm (Aluminium)    2.00mm (Aluminium)    1.60mm (Aluminium)
o    2.30mm (Copper)    1.60mm (Copper)    1.40mm  (Copper)
•    Machine Speed    Capstan No. -9 (Speed-15 Mtr./Sec.)    Capstan No. -11 (Speed-15 Mtr./Sec.)     Capstan No. -13 (Speed-15 Mtr./Sec.)
•    Final Die    Rotating die    Rotating die    Rotating die
•    Final Die Motor    0.5 HP, 50 RPM    0.5 HP, 50 RPM    0.5 HP, 50 RPM
•    Gear    6 Module, Helix angle 15o    6 Module, Helix angle 15o    6 Module, Helix angle 15o
•    Gear Width    100 mm    100 mm    100 mm
•    Bearing    6314 SKF (Ball Bearing)    6314 SKF (Ball Bearing)    6314 SKF (Ball Bearing)
•    Gear Box Plate    20 mm    20 mm    20 mm
•    Motor HP Required (Main Machine)    125 HP-1440 (A.C. Frequency Drive)    150 HP-1440 (A.C. Frequency Drive)    175 HP-1440 (A.C. Frequency Drive)
•    Coolant Pump    Rotodel gear pump 1"- with 3 HP Crompton motor    Rotodel gear pump 1"- with 3 HP Crompton motor    Rotodel gear pump 1"- 150 LPM with 3 HP Crompton motor
•    Die Lubricant    By high pressure jet    By high pressure jet    By high pressure jet
•    Gear Oil Machine Gear Box/Capacity    Castrol 460 No./550-600 Ltr (approx)    Castrol 460 No./550-600 Ltr (approx)    Castrol 460 No./550-600 Ltr (approx)
•    Drawing Coolant    1400 - 1500 Ltr. (approx)    1600 - 1700 Ltr. (approx)    1700 - 1800 Ltr. (approx)
•    Inching by foot pedal    Provided    Provided    Provided
•    Die Casing Size    53 X 34 mm    53 X 34 mm    53 X 34 mm
•    Main Machine Dimension (Approx)    7000mm L, 1140mm W, 1000mm H    8500mm L, 1140mm W, 1000mm H    105000mm L, 1140mm W, 1000mm H
•    Foundation Drawing    Provided before delivery    Provided before delivery    Provided before delivery
